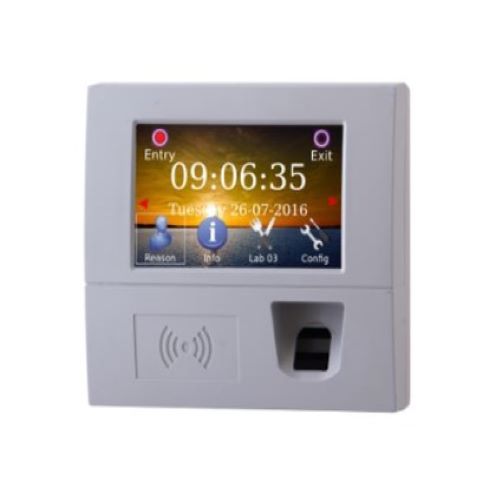

The FC04 thanks to a wide range of communication modes meet all needs. Terminal interface is based on exchange of files and commands. Easy GUI interface is similar to tablet and smartphone experience. Linux operating system provides great performance. It has weather resistant case, reliability and low cost.



Scarica la nostra brochure.

Categories: , ,

Caratteristiche tecniche principali:

  • LCD VGA 480 x 800 TFT 65536 colors Display with white led back-light
  • Touch-screen
  • Polyphonic stereo audio or monotone buzzer
  • Build-in RFID 125 Khz or 13.56 Mhz reader Mifare/NFC
  • Build-in biometric optical reader
  • DDR3 512 Mbyte memory
  • 1 Ghz Cortex A8 CPU
  • High precision temperature-compensated real time clock Linux operating system
  • 10-100 Auto-MDIX Ethernet
  • 2 x USB 2.0 port
  • Three serial communication ports RS232/485
  • Two internal relays
  • 2 digital inputs
  • Internal UMTS/3G dongle
  • Internal WiFi dongl
  • External USB plug for pen-drive
  • PoE Power supply or 9-36 Vdc with ext, adapter
  • Size W H D 165 x 158 x 60
